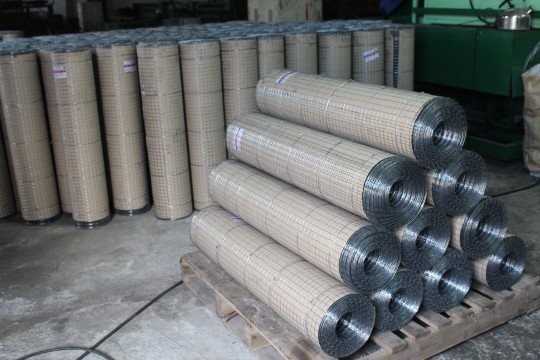

Welded mesh
Welded mesh
Welded mesh is manufactured according to TCCS standards; TCVN 2053 - 93 standards; TCVN 5758 - 93 standards.
The amount of zinc according to the standards and according to customers' requirements.
Widely used in construction; transportation; livestock, cultivation, aquaculture; protection of housing or park and other civil appliances.
| ID | Grid size (mm) | Wire diameter (mm) | Height (m) | Length (m) | Wieght (kg) |
| 1 | 5x5 | 0.56 | 1.0 | 20.0 | 12.3±0.2 |
| 2 | 10x10 | 0.56 | 1.0 | 20.0 | 8.3±0.2 |
| 3 | 12x12 | 0.7 ; 0.8 | 1.0 | 20.0 | 11.0±0.2 |
| 4 | 15x15 | 0.8 | 1.0 | 20.0 | 8.8±0.2 |
| 5 | 20x20 | 0.9 | 1.0 | 20.0 | 10±0.2 |
The wire diameter and the length of a welded mesh roll can be changed according to customers’ requirements.
Wire is galvanized steel wire ?.
All product are packed and labeled with trademark by the company.
Have a registered trademark stamp for counterfeiting.
